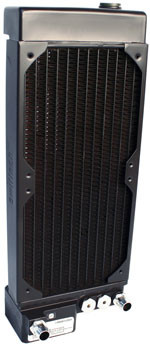

Swiftech MCR220-DRIVE-R3 MCR-X20 Drive Rev3 Series Heat Exchangers with Integrated Pump and Reservoir

Price:
 $159.00
MPN:
 MCR220-DRIVE-R3
Brand:
UPC:
 8.78E+11
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Swiftech MCR220-DRIVE-R3 MCR-X20 Drive Rev3 Series Heat Exchangers with Integrated Pump and Reservoir to your wish list.

SHARE

Product Description

High performance Features


Benefits

Three inlet ports provide return lines for up to 3 different waterblocks (use this feature in conjunction with the Apogee HD waterblock) Dramatic flow rate improvements in complex multi-block environments

The dual or triple 120mm radiator form factors provide 2 to 3 times the heat dissipation capacity afforded by the single 120mm radiators found in entry level kits.

Superior performance headroom

Substantially reduced operating temperatures

Ability to daisy-chain multiple water-blocks in the loop with reduced impact on CPU cooling performance

Higher overclocks

The high-pressure MCP35X pump now runs at up to 4500 rpm, and allows vastly superior system flow rates than comparably sized pumps found in entry level kits, allowing users to daisy-chain multiple water-blocks in the loop.

Integration of the pump into the radiator reduces the overall system pressure drop compared to conventional setups.


Convenience and Versatility Features


Benefits

Three inlet ports provide return lines for up to 3 different waterblocks (use this feature in conjunction with the Apogee HD waterblock) No need for clumsy and cumbersome Y splitters

The patent pending integrated pump and built-in reservoir of the MCR Drive heat exchanger combine 3 of the 4 typical elements found in conventional CPU liquid cooling systems.

Easier to integrate in any PC

Simplified installation

Safer, more reliable operations (less joints)

The product is fully functional in both vertical and horizontal orientations Easier to integrate in any PC
PWM controlled pump enables variable speed from 1300 to 4500 rpm From virtually silent operations at low speed to ultra-high flow rates in multiple waterblocks (CPU + VGA's) and/or radiator configurations

Only the water-block(s) will need to be changed in case of platform upgrade.

Future-proof concept reduces the cost of ownership over the long term, and guarantees that the core cooling system can be migrated from one computer to another.




Radiator general construction

MCP35X Pump specifications summary
Overall Dimensions, Including pump
MCR220 Drive™
Width
5.0"(128mm)
Height
12.8"(325mm)
Depth
2.8"(72mm) + fitting
Weight
36.5oz(1079g)
  • 2-pass, single row construction
  • Brass body and tubes, louvered copper fins
  • POM pump housing
  • Optimized fin-density for maximum heat dissipation at low
    noise
  • Patent-pending integrated pump housing
  • M3.5 threaded fan and case-mounting holes
  • Slim form factor 11.2 x 5 x 1.3" (284 x 128 x 34mm)
  • G1/4 threaded ports
  • High-durability acrylic paint finish
  • ROHS compliant
Motor type
Electronically commutated, brushless DC, spherical motor

Nominal voltage

12 V DC

Operating voltage range
9 to 13.4 VDC

Max. nominal power (@12 V)

18 W

Max. nominal current (@12 V)
1.5 A

Max. nominal head (@12 V)

14.7 ft (4.4m)

Max nom. discharge (@12V)

~ 4.75 GPM (17.5 LPM)

Maximum pressure
22 PSI (1.5 BAR)
Temperature range
Up to 140 °F (60 °C)

Electrical power connector

Molex 4 pin

PWM + RPM Signals
4-pin connector
RoHS
Compliant

Port thread standard

G1/4

MTBF
50,000 Hours

Other Details

MPN:
MCR220-DRIVE-R3
