Swiftech MCR140-X MCR140-X Drive w/ Built-in Reservoir & Pump

Price:
 $99.99
MPN:
 MCR140-X
Brand:
UPC:
 877790002916
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Swiftech MCR140-X MCR140-X Drive w/ Built-in Reservoir & Pump to your wish list.

SHARE

Product Description

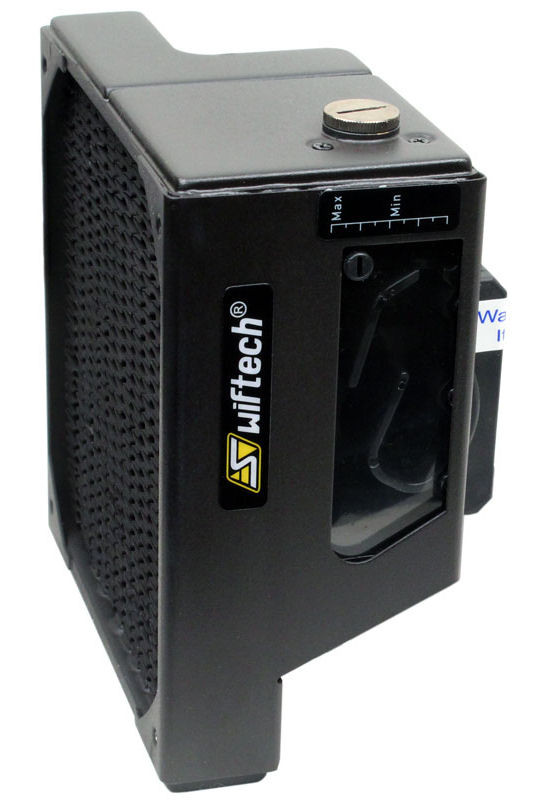

The patent pending MCR140-X Drive 140mm copper and brass radiator includes a built-in windowed illuminated reservoir, and an integrated high pressure pump (MCP30 model).

As a DIY item, the MCR140-X ships without fan, coolant, or fittings. The product is compatible out of the box with all G1/4 fittings, so any tubing can be installed at the user's choice.


Radiator Material Brass tubes, louvered copper fins, 12~14 FPI
Dimensions 150mm x 140mm x 90mm
Radiator and pump thread class G 1/4
Radiator Installation hardware
Standard: (4) 6-32 x 1 3/16 (30mm)  Philips screws
Pump speed control
PWM
Pump Speed range
1200 ~ 3000 RPM
Pump nominal voltage
12 VDC
Pump nominal power
6W
Pump Bearing type
Ceramic shaft, PTFE bearing
Pump Power connector
SATA
Pump RPM & PWM connector
Mini 4-pin
Pump MTBF
60,000 hours
ROHS Compliant

Other Details

MPN:
MCR140-X
