Product Description

Product Compatibility:  Radeon HD 6990 - Reference design

Product Description

Named after the Epsilon Aurigae binary star system, the Epsilon series of waterblocks are single slot, full cover liquid cooling solutions for dual GPU graphic cards. "Full cover" means that the waterblock cools both GPU's, Voltage Regulators, I/O chip, memory modules, and other critical components.

The Epsilon HD6990 is specifically designed for AMD® Radeon™ HD6990 reference design graphics cards. A true Full Cover and Extreme Performance Cooling Solution, the product covers the entire PCB and utilizes all the stock mounting holes, thus preventing destructive warping of the printed circuit board.

  • Superior thermal performance at the GPU level thanks to our embedded 0.6x0.6mm thin-pin matrix located directly above the GPU area.
  • High thermal conductivity thermal pads already pre-applied in the memory areas.
  • Voltage Regulators in direct contact with the cold plate pedestals for vastly superior heat transfer compared to thermal pads (up to 20°C difference) - non conductive Arctic Céramique thermal compound included.
Flow Performance
  • Moderate flow restriction by design to take into account multiple water-blocks in the same loop.

Safety

  • True full-cover waterblock:  the block covers the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly prevents bending and/or damage to the card .
  • Stainless-steel standoffs provide safe and reliable installation method even to beginners.

Build Quality

  • Precision machined and mirror finish chrome plated copper base plate.
  • Precision machined durable black acetal housing.

Special User Features

  • Single-slot, factory-spec design PCI bracket included, frees up an extra PCI slot.
  • Elegant highly reflective black face sticker.

Other features

  • Designed to work with the excellent stock Radeon back-plate, and GPU cross-brackets.

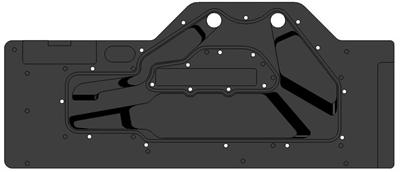

  • Housing: Precision machined black acetal copolymer

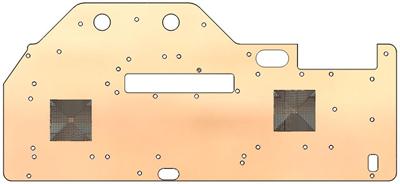

  • CPU & memory cold plate: Precision machined & chrome plated C110 copper, with two 0.6x0.6mm embedded pin matrix over each GPU area
  • Leak tested @ 30 PSI

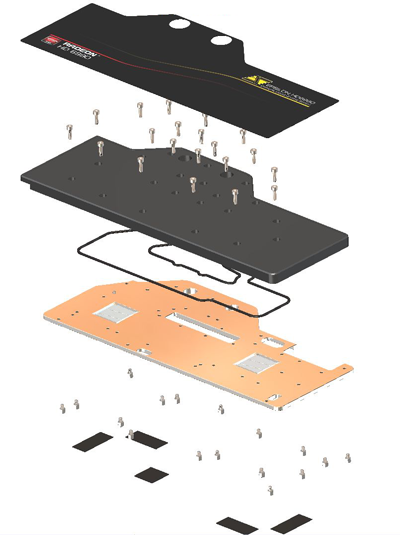

  • Exploded view
  • Safe standoff retention mechanism
  • Inlet & Outlet port thread standard: 1/4" BSPP (G1/4)
  • Thermal joints installation:
    • GPU:  thermal grease (Arctic Céramique included)
    • Memory: pre-installed thermal pads
    • Power mosfets: thermal grease (Arctic Céramique included)

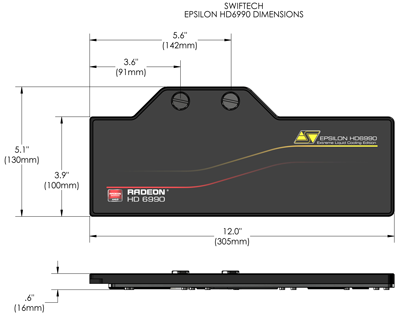

  • Dimensions:  (L) 12" - 305mm  x (W) 5.1" - 130mm x (H)  0.6" - 16mm (standoff to top surface)
  • Weight 50 oz - 1430 g

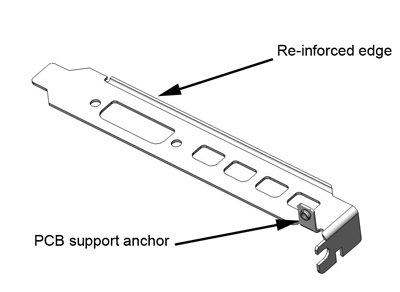

  • Single slot PCI  bracket

Other Details

MPN:
EPSILON-HD6990
