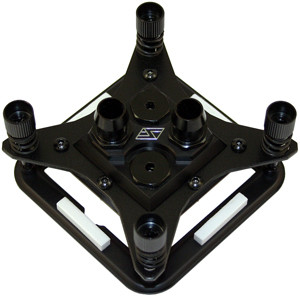

Swiftech Apogee apogee-HD-BK Apogee HD CPU Waterblock

Price:
 $779.00
MPN:
 apogee-HD-bk
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Add to Wishlist

Click the button below to add the Swiftech Apogee apogee-HD-BK Apogee HD CPU Waterblock to your wish list.

SHARE
Pin It

Product Description

  • Improved thermal performance with emphasis on Intel® and AMD® latest and upcoming processors: the HD is Socket LGA2011 (Intel®) and "Bulldozer" (AMD®) ready.
  • Reduced flow restriction compared to the Apogee XT Rev2.
  • Innovative features, with the introduction of the multi-port connectivity:   two more outlet ports have been added for dramatic flow rate improvements in multiple waterblock configurations and when used with the new MCRx20 Drive Rev3 radiators that now also include two additional inlet ports (3 total); read more about "Flow Parallelization" in the section below including examples and in-depth explanations.
  • Improved thermal performance out of the box with the inclusion of high performance PK1 thermal compound
  • Cosmetic appeal: the Apogee HD is now available in two colors, Classic black or Fashionable white to match high-end case offerings from NZXT™, Silverstone®, Thermaltake and many others.
  • Reduced cost of ownership.

    Improved Performance World's best thermal performance based on our comparative testing, and 2ºC better than the Apogee™ XT Rev2.
    Low To Moderate Flow Restriction 30% lower flow restriction than the Apogee™ XT Revision 2.
    Exclusive Triple Outlet Port Design
    Ability to parallelize the flow to the graphics, chipset and/or memory waterblocks to improve overall loop performance by dramatically increasing the flow rate where it matters most: in the radiator and CPU waterblock. This exclusive feature can be easily activated when the block is used in conjunction with the new MCRx20 Drive Rev3 radiators that now also include 3 inlet ports.

    Another benefit of such setup is that it is now possible to use reduced tubing size for the devices installed in parallel without unduly taxing the pump, resulting in less clutter, and easier tube routing in cramped spaces.
    Compression Fittings Compatibility Chart

    Primary Inlet/Outlet

    Secondary Outlets

    Primary Intlet/Outlet

    Secondary Outlets
    With 3/4" Tube OD fittings Max 3/8" tube OD fittings With 5/8" Tube OD fittings Max 1/2" Tube OD fittings
    Fine-tuned Retention Mechanism, with universal Desktop Processor Compatibility
    Swiftech's retention mechanism is widely recognized as the simplest and safest to use. It has been further enhanced with added attention to details and quality, such as hollowed thumb screws, and improved back-plate fabrication.
    • Adjustable screws provide compatibility with all Intel Desktop Processors:
      • Socket 1155, 1156, and 1366 (back-plate included - socket 1155 installed by default)
      • Socket 775 (not included, mailed free of charge upon request)
      • Socket 2011 spring-screw kit included - requires installation
    • An elegant Multi-mount hold-down plate provides compatibility with all AMD Desktop processors:  sockets 754, 939, 940, AM2, AM3, 770, F, FM1, as well as legacy Intel Server socket 771 processors. The kit is not included with the Apogee HD, but supplied for free (shipping not included), upon request.
    Available in Black or White The Classic All Black will give any system the high-tech look you are looking for, or the fashionable white combined with the new MCW82, Bridges, and MCP35x pump top (also available in white) will allow you to build elegant and distinctive systems.
    Shipped with High Performance Thermal Compound The Apogee™ HD ships with PK1 thermal compound highly rated by enthusiast users and reviewers (and confirmed by in-house testing) for its excellent thermal performance and ease of application.
    Lower Cost More affordable than the Apogee™ XT and other top Performing Blocks on the market (the HD also includes 1/2" fittings and clamps, whereas many of our competitors do not).
    Certifications The Apogee™ HD has been tested and qualified as "Fusion Thermo Compatible" by Asus®. Fusion Thermo refers to a new type of VRM heatsink that combines both a copper heat pipe and a watercooling channel, allowing users to choose either air or liquid cooling. This technology is currently featured in the RoG Maximus V Formula motherboard.

    The housing is precision-machined from black or white polyacetal copolymer (POM).
    The base-plate is precision-machined from C110 copper. Thermal design of the cooling engine is characterized by Swiftech's fin/pin matrix composed of 225 µm (0.009") micro structures;  the matrix has been further refined with variable width cross channels to improve flow rate without affecting thermal efficiency, and fabrication quality has also been enhanced to reduce micro machining imperfections.
    The mating surface to the CPU is mirror polished, in full compliance with Swiftech's highest quality standards




    Dimensions:

    Net Weight: 11.8 ounces (335 grams)

    Fittings and Tubing Compatibility
    • The Apogee™ HD ships pre-installed with black powder-coated high flow G1/4" x 1/2" Eurostyle barbs; 3/8" barb fittings are also available in option.
    • All water-block port threads are G1/4" compatible.

Other Details

MPN:
apogee-HD-bk
