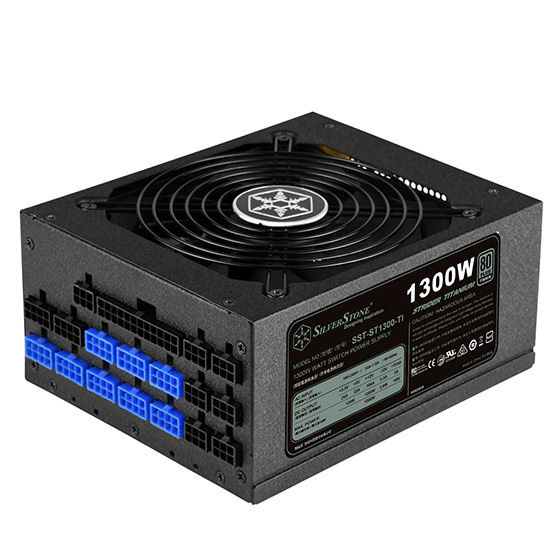

Silverstone SST-ST1300-TI Strider Titanium Series 80 PLUS Titanium 1300W ATX Power Supply

Price:
 $379.00
MPN:
 SST-ST1300-TI
Brand:
UPC:
 844761015237
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the Silverstone SST-ST1300-TI Strider Titanium Series 80 PLUS Titanium 1300W ATX Power Supply to your wish list.

SHARE
Pin It

Product Description

￭ Top-level efficiency with 80 PLUS Titanium certification

￭ All Japanese capacitors

￭ 100% modular cables

￭ 24/7 continuous power output with 50℃ operating temperature

￭ Class-leading single +12V rail

￭ Strict ±3% voltage regulation and low ripple & noise

￭ Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support

￭ Ultra silent 135mm fan with intelligent semi-fanless operation



Model No.
SST-ST1300-TI
Max. DC Output
1300W (Peak 1400W)
Power density
560W per liter
Load Range

 +3.3V +5V +12V1 +12V2 +5VSB -12V
Max.(Amps)
 25A 22A 108A / 3.0A 0.3A
Peak (Amps)
 / / / / / /
Min.(Amps)
 0A 0A 0.15A / 0A 0A
Range (%)
 ±3% ±3% ±3% / ±5% ±10%
Line Reg.(%)
 ±1% ±1% ±1% / ±1% ±1%
Ripple(mVp-p)
 50mV 50mV 120mV / 50mV 120mV
Color
Black (lead-free paint)
combined +3.3, +5V
120W
Combined +12V
1300W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
90% ~ 94% at 10% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0 ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector (550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (550mm)
8 x 8 / 6-Pin PCIE connector ("550mm" x 8)
16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4)
6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2)
1 x 4-Pin Floppy adapter connector (100mm)
Cooling System
Single 135mm silent fan
Form factor  ATX
Noise Level
0 ~ 36 dBA
Dimension
150 mm (W) x 86 mm (H) x 180 mm (D)
5.91" (W) x 3.39" (H) x 7.09" (D)
Weight
3.96 kg
Certification
80 PLUS Titanium
Other

Compatible with ATX12V v2.4

Other Details

MPN:
SST-ST1300-TI
