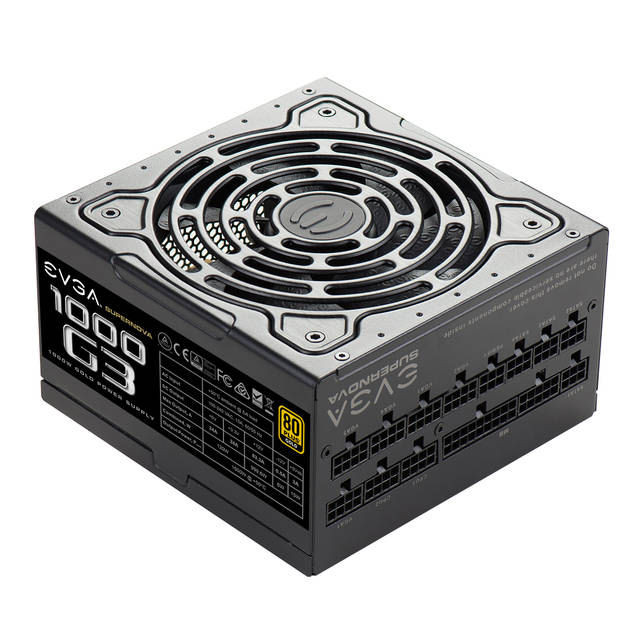

EVGA 220-G3-1000-X1 SuperNOVA 1000 G3 1000W 80 PLUS Gold ATX12V & EPS12V Power Supply

Price:
 $329.00
MPN:
 220-G3-1000-X1
Brand:
UPC:
 843368023515
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Add to Wishlist

Click the button below to add the EVGA 220-G3-1000-X1 SuperNOVA 1000 G3 1000W 80 PLUS Gold ATX12V & EPS12V Power Supply to your wish list.

SHARE
Pin It

Product Description

  • Mfr Part Number: 220-G3-1000-X1
  • Features:
    • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
    • 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
    • Highest quality Japanese brand capacitors ensure long-term reliability
    • Fully Modular to reduce clutter and improve airflow
    • NVIDIA SLI & AMD Crossfire Ready
    • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
    • EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
    • Hydraulic Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
  • Maximum Power: 1000 W
  • Input:
    • Voltage: 100 ~ 240 VAC
    • Current: 15 A
    • Frequency Range: 50 ~ 60 Hz
  • Type: ATX12V / EPS12V
  • Efficiency: 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical
  • MTBF: 100,000 hours
  • Fan: 1x 130mm Hydraulic Dynamic Bearing
  • Output: +3.3V @ 24A, +5V @ 24A, +12V @ 83.3A, +5VSB @ 3A, -12V @ 0.5A
  • Connectors: 1x 24pin ATX Main Connector, 2x 8(4+4)pin EPS Power Connector, 8x 8(6+2)pin PCI-Express Connectors, 12x SATA Connectors, 4x 4pin Peripheral Connectors, 1x Floppy Connector
  • Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
  • Dimensions (WxLxH): 150.0 x 150.0 x 85.0 mm
  • Weight: 10.0 lbs

Other Details

MPN:
220-G3-1000-X1
