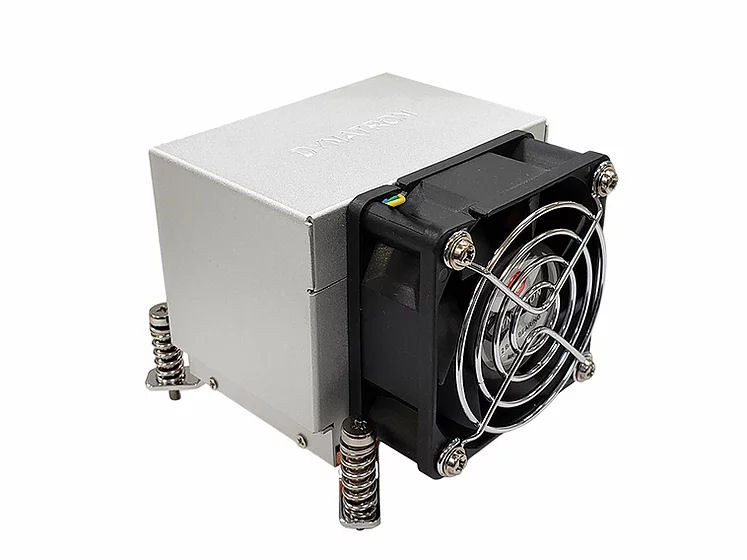

Dynatron P66G Intel Socket 775 2U CPU Cooler

Price:
 $41.99
MPN:
 P66G
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
Ships in 2 business days
Shipping:
 Calculated at checkout


Click the button below to add the Dynatron P66G Intel Socket 775 2U CPU Cooler to your wish list.

SHARE

Product Description

CPU Socket 775
CPU Support Intel® Core 2 Quad Q9550, Q9450, Q9300, Q6700, Q6600, Core 2 Duo, Core 2 Extreme QX9650, QX6700, X6800, Pentium® D Dual-core  Smithfield/Presler/Conroe & All Single-Core Prescott/Cedar Mill
Solution 2U&Up
Overall Dimension 96.0 x 85.0 x 68.0 mm
Weight 700 g
Material Copper Heatsink with Heatpipes
Fan Dimension 60 x 60 x 25 mm
Speed At Duty Cycle 20%: 1600 RPM
At Duty Cycle 50%: 4000 RPM
At Duty Cycle 100%: 8000 RPM
Bearing 2 Ball Bearing
Rated Voltage 12 V
Power At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 1.8 W
At Duty Cycle 100%: 7.2 W
Air Flow At Duty Cycle 20%: 8.75 CFM
At Duty Cycle 50%: 21.88 CFM
At Duty Cycle 100%: 43.75 CFM
Noise Level At Duty Cycle 20%: 16.85 dBA
At Duty Cycle 50%: 35.94 dBA
At Duty Cycle 100%: 51.0 dBA
Air Pressure At Duty Cycle 20%: 0.0279 inch-H2O
At Duty Cycle 50%: 0.1743 inch-H2O
At Duty Cycle 100%: 0.6972 inch-H2O
Lead Wire Pin Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
Note RoHS Compliance
