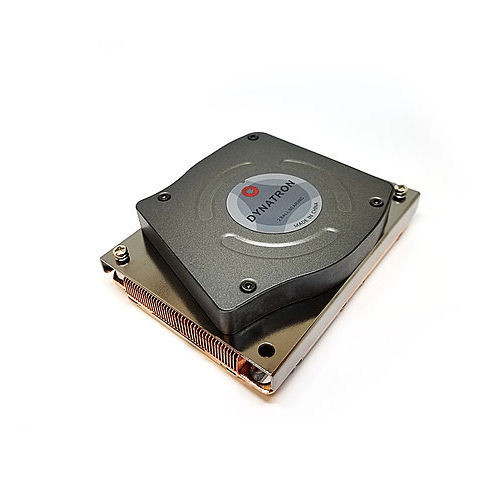

Dynatron B18 Intel FCLGA3647 1U Active CPU Cooler

Price:
 $44.75
MPN:
 B18
Brand:
Condition:
 NEW
Availability: Ships in 2 business days
.
Shipping:
 Calculated at checkout


Sorry but this item is currently unavailable.

Please check back at a later stage.

Click the button below to add the Dynatron B18 Intel FCLGA3647 1U Active CPU Cooler to your wish list.

SHARE

Product Description

Recommend for Intel® Xeon® Platinum / Gold Family Processor( products formerly Skylake ), Socket FCLGA3647 Narrow ILM Only. Active Cooler for Blade Server. Support CPU power up to 205 Watts heat dissipation.



CPU Support

Intel® Xeon® Platinum / Gold Family Processor
( products formerly Skylake )

CPU Socket

FCLGA3647 Narrow ILM

Solution

Blade Server and Up

Dimensions

108 x 81.5 x 25 mm

Weight

460g

Material

Copper1100 Heatsink with Vapor Chamber Base

Fan Dimension

Ø80 x 13 mm

Speed

At Duty Cycle 20%: 1500 ± 200 RPM
At Duty Cycle 50%: 4000 ± 10% RPM
At Duty Cycle 100%: 8000 ± 10% RPM

Power

At Duty Cycle 20%: 1.44 W
At Duty Cycle 50%: 4.8 W
At Duty Cycle 100%: 19.2 W

Bearing

Ball Type, Double

Rated Voltage

12V

Air Flow

At Duty Cycle 20%: 4.3 CFM
At Duty Cycle 50%: 11.6 CFM
At Duty Cycle 100%: 22.8 CFM

Noise Level

At Duty Cycle 20%: 25.6 dBA
At Duty Cycle 50%: 46.9 dBA
At Duty Cycle 100%: 62 dBA

Air Pressure

At Duty Cycle 20%: 3.0 mm-H2O
At Duty Cycle 50%: 21.0 mm-H2O
At Duty Cycle 100%: 83.8 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Other Details

MPN:
B18
