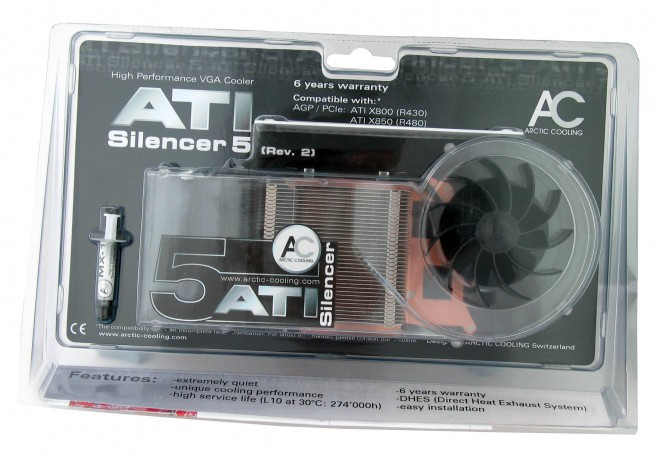

Arctic Cooling AVC-AT5R2 ATI Silencer 5 Rev. 2 VGA Cooler

Model Name: AT Silencer5 rev.2
Model #: AVC-AT5R2

Application:
AGP & PCIe:
ATI X800 (all versions, except AIW)
ATI X850 (all versions, except AIW)

Over all Dimensions (active GPU Cooler): 218.5 x 100 x 31 mm
Weight (active GPU Cooler):100 g
Overall Dimensions (passive Memory Cooler):137 x 103 x 35 mm
Weight (passive Memory Cooler): 56 g

Fan:
Dimension: 72mm
Speed: 2000 RPM
Bearing: ARCTIC Ceramic Bearing
Noise Level: 0.5 Sone

Easier Installation
New clip and back plate design for better fit.
Thermal paste is already pre-applied to the heatsink.

Exhanced Compatibility
New fan casing design to enhance compatibility.

Ripple Noise Solution
A filter is integrated into the PCB to reduce the noise generated from the motor.

Extremely quiet
A large fan and optimized fanblades offer a minimum noise level at a high air flow.

Unique Cooling Performance
Highest fin surface area and a 2.5 mm thick copper base achieve best cooling performance at its noise level.

High Service Life (L10 at 30°C: 274000h)
Our ARCTIC Ceramic Bearing (alloy bearing and Ceramic shaft) provides our fans with an outstanding service life.

DHES (Direct Heat Exhaust System)
The DHES draws cool air from inside the case and exhausts warm
air outwards. This prevents the fan from recycling warm air to cool the
GPU, which increases cooling performance.
Further the DHES lowers the air temperature inside the case, because the heat
of the GPU will be carried out directly.
